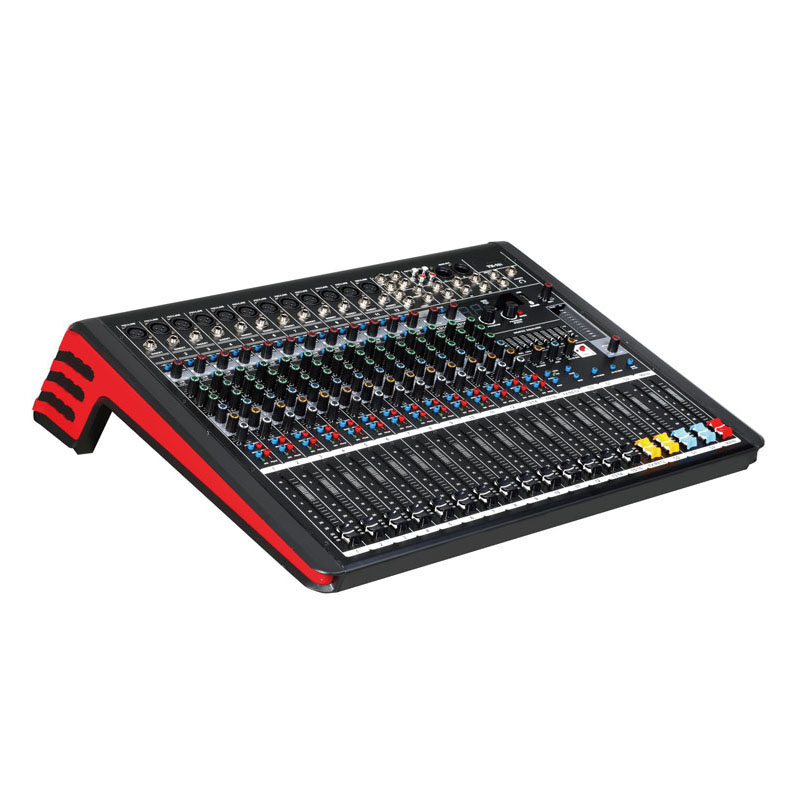

TG Large models audio mixer （can do 12/16/20 channel）

1. Analog mixer, high-quality ultra-low noise circuit design, large dynamic margin, novel microphone preamplifier, classical 3-band equalizer, can make the sound warm and have strong musicality

2.99 DSP effectors with built-in high-quality audio, stereo sound, Bluetooth MP3 player

3.9 band stereo equalizer, equipped with mute, monitor, low cut, 48V, and volume attenuation switches for each channel

4.2 groups with independent audio output terminals

5.2 multifunctional stereo assisted returns, independent headphones and stereo recording output, high-quality components and sturdy structure ensure product durability

Specification (technical parameters):
▲ Maximum Output Level: 18dBm (1KHz, THD=0.5%)
▲ Residual Noise: -110dB
▲ S/N (Signal to Noise Ratio): ≤ 78dB
▲ Equivalent Input Noise (equivalent noise source input electromotive force): -115dBm
▲ Headphone Power: 200mw (1KHz, THD=0.5%, 200Ω)
▲ Equalization:
Low (low frequency): 80Hz ±15dB
Mid (mid frequency) ): 2.5KHz±15dB
High (high frequency): 12KHz ±15dB
▲ Gain Control: MONO (mono)-60dB~-40dB
▲ Gain Control: ST (stereo) -38dB
▲ Frequency Response (frequency response): 20Hz~20KHz(±3dB)
▲ THD+N (total harmonic distortion + noise): ≤0.003% (1KHz, 0.775V)
▲Input voltage: DC2000MA(2A) 12V DC
