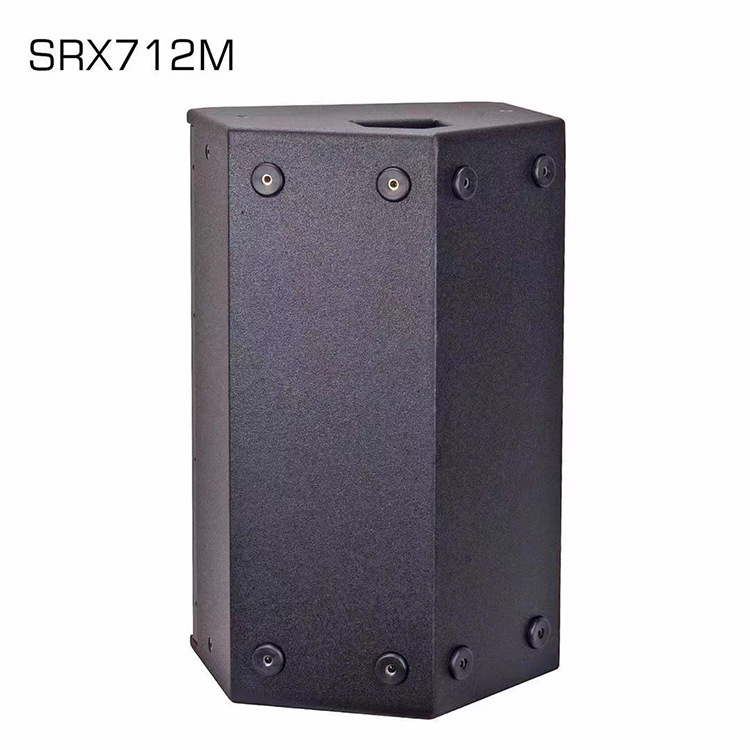

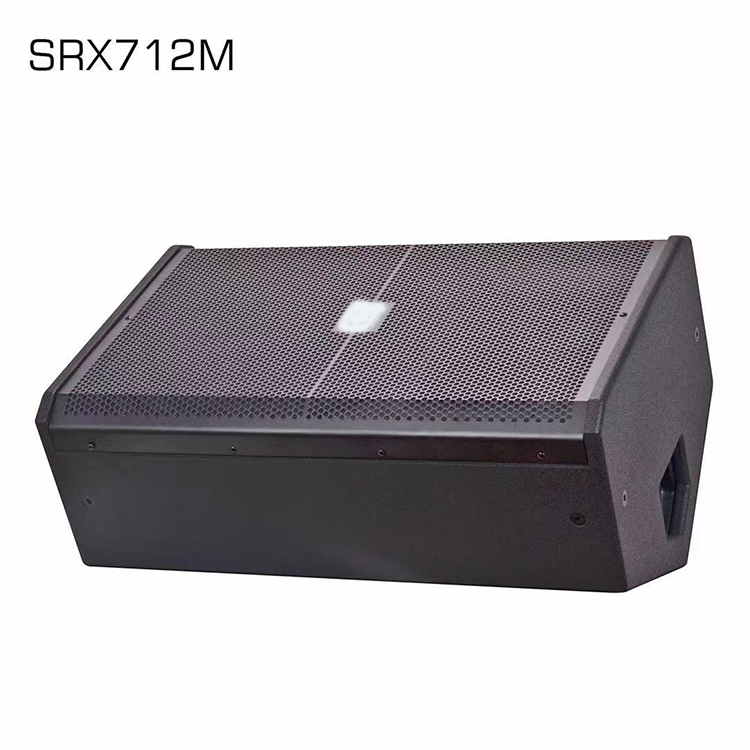

SRX712M 12 Inch Monitor Speaker

MOQ: 10pcs

Applications: Live performance stage monitoring, speech reinforcement, reinforcement of vocal and acoustic music

Back to Contents

Quote Now sales1@epxunguan.com

SRX712M is a 12″, two-way, bass-reflex stage monitor/utility speaker
Compact and low-profile for minimal obstruction of audience sight-lines
90° x 50° nominal coverage
Bi-amplified or full-range passive operation
Dual-angle pole socket for applications requiring tripod mounting
Optional yoke available for trussmounted or suspended applications
Neodymium magnet Differential Drive woofer for high-power capacity and very light-weight
3″ (diaphragm) neodymium magnet compression driver
Applications: Live performance stage monitoring, speech reinforcement, reinforcement of vocal and acoustic music
High-performance satellite
Frequency Range (-10 dB): 70Hz – 20kHz
Frequency Response (±3 dB): 83Hz – 18kHz
Power Rating (Continuous/Program/Peak): 800 W / 1600 W / 3200 W
Dimensions (H x W x D): 13.75 in. x 21.5 in x 10.25 in
Net Weight: 33 lbs

Model	SRX712M
Frequency Response (±3 dB)	83Hz – 18kHz
Sensitivity (1w/1m)	92 dB SPL
Long-term SPL	114 dB
Maximum SPL	120 dB
Low Frequency Driver	1×12 inch Cone driver(170mm magnet)
High Frequency Driver	1×1.75 inch Neodymium driver
Nominal Impedance	8ohms
MDF	300 watts
Plywood	300 watts
Radiation Angle	90 °H x 50 °V Rotatable Horn
Dimensions (H x W x D)	354260545mm
Enclosure Material	15mm MDF
Surface Finished	black catalyzed polyurethane paint
Grille	1.5mm black perforated steel framed mounted black acoustic foam
Specification
	HF：34mm V/C
	Iron frame LF：156mm magnet 65mm V/C

	HF：34mm V/C
	Aluminum frame LF：170mm magnet 65mm V/C
