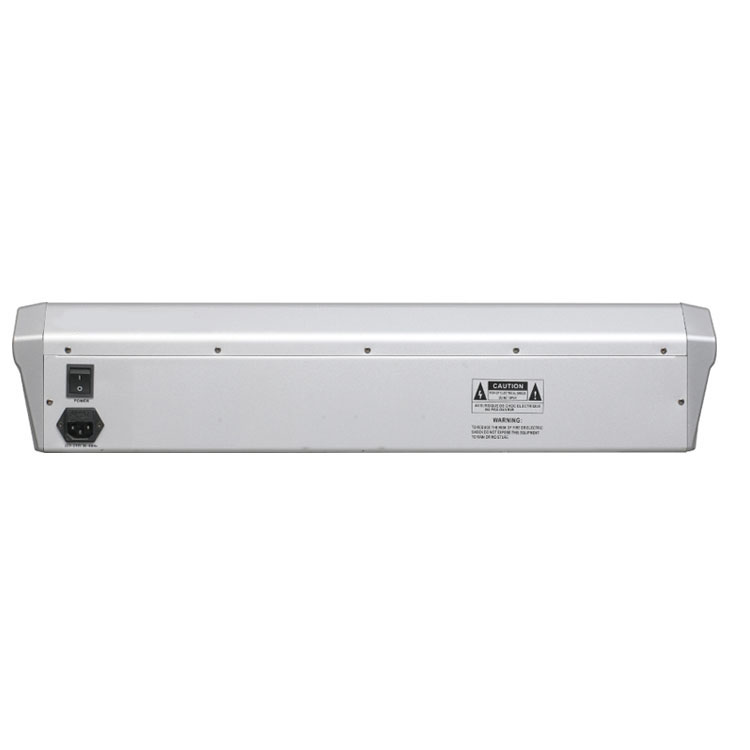

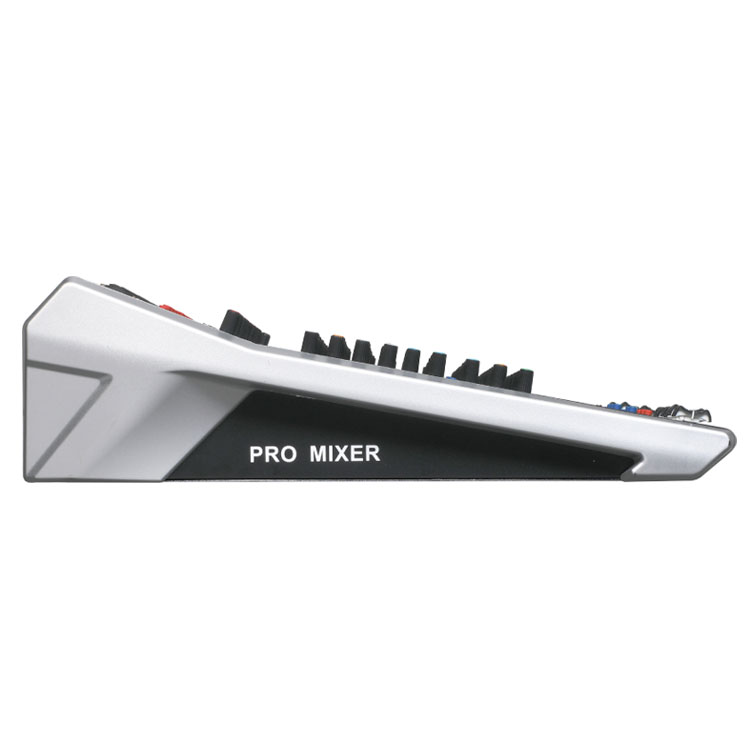

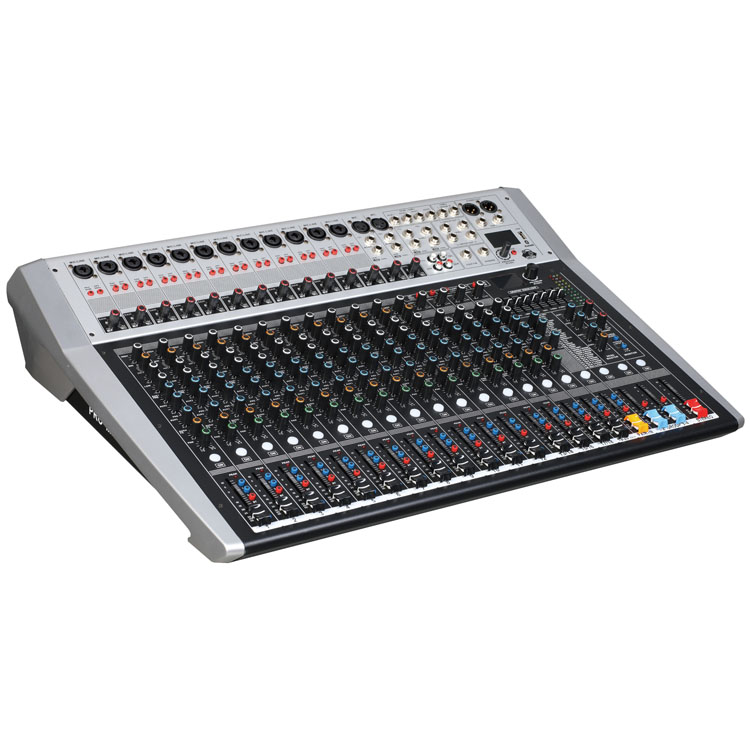

LC 16/20/24 channels mixer 99 DSP digital audio effect mixer

1.1-12 mono and 4 stereo inputs

2. High quality and low noise balanced microphone input

● 3. Each microphone input is equipped with a high-quality+48V phantom power supply

● 4. Triple band equalization for intermediate frequency scanning, British style

5.4 sets of auxiliary outputs, with the option to send before or after the pusher

6. High precision three color precise level display, accurate display of output level 7.70MM stroke high analysis pusher

● 8. Built in 99DSP digital effects processor

9.7 band stereo equalizer

10. MP3 player with USB interface and recording Bluetooth function

Specification (technical parameters):
▲ Maximum Output Level: 18dBm (1KHz, THD=0.5%)
▲ Residual Noise: -110dB
▲ S/N (Signal to Noise Ratio): ≤ 78dB
▲ Equivalent Input Noise (equivalent noise source input electromotive force): -115dBm
▲ Headphone Power: 200mw (1KHz, THD=0.5%, 200Ω)
▲ Equalization:
Low (low frequency): 80Hz ±15dB
Mid (mid frequency) ): 2.5KHz±15dB
High (high frequency): 12KHz ±15dB
▲ Gain Control: MONO (mono)-60dB~-40dB
▲ Gain Control: ST (stereo) -38dB
▲ Frequency Response (frequency response): 20Hz~20KHz(±3dB)
▲ THD+N (total harmonic distortion + noise): ≤0.003% (1KHz, 0.775V)
▲Input voltage: DC2000MA(2A) 12V DC
