- Specification
Our Biggest Selling Touring-Grade Amplifier, Delivering Rock-Solid Reliability and Sonic Purity

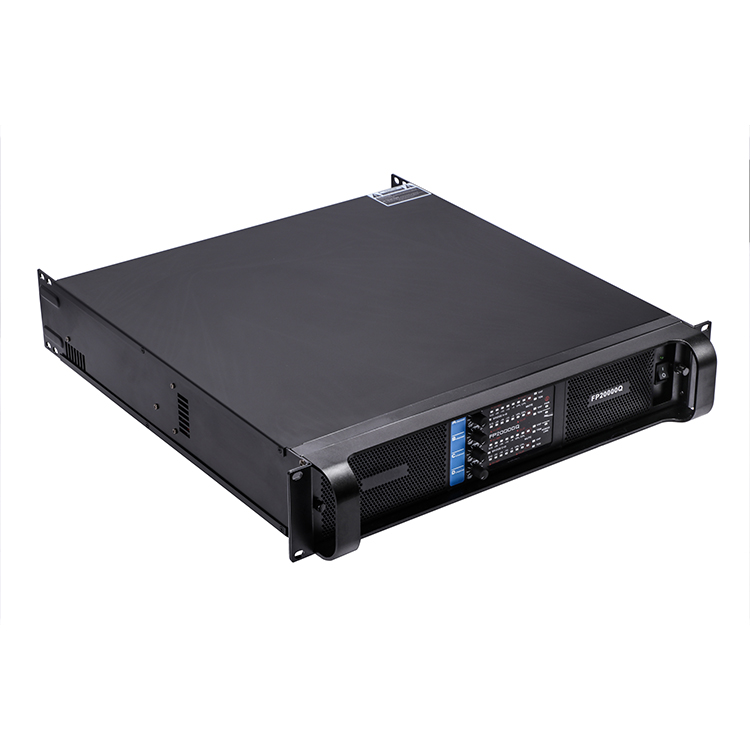

The FP 20000Q is the flagship four-channel model in the FP+ Series. At the core of the FP 20000Q’s performance is the now proven technological milestone patented Class TD? output stage, an amplifier topology that approaches the exceptional efficiency of Class D while retaining the sonic purity of proven Class B designs. Further contributing to the remarkable efficiency of the FP 20000Q is a Regulated Switch Mode Power Supply (R.SMPS?), which gives the added benefit of stabilizing rail voltages to the output even with wide fluctuations of mains voltage. A highly refined and updated circuit layout optimizes the interaction of R.SMPS and Class TD to produce the extraordinary power density of the FP 20000Q.
| Number of channels | 4 |
| Peak total output both channels driven | 2350W |
| THD 20 Hz – 20 kHz for 1 W | <0.1% |
| Signal To Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Frequency response (1 W into 8 ohms) +0/-3 dB | 6.8 Hz – 34 kHz |
| Input impedance | 20 kOhm |
| Input Common Mode Rejection, CMR | 54 dB |
| Output impedance @ 100 Hz | 32 mOhm |
| Weight | 21 kg (26.4 lbs.) |
