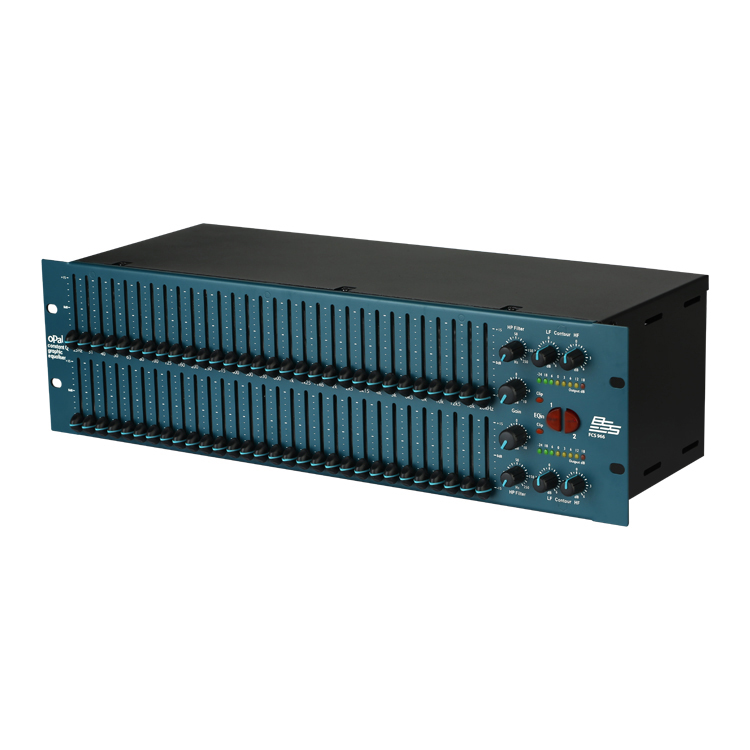

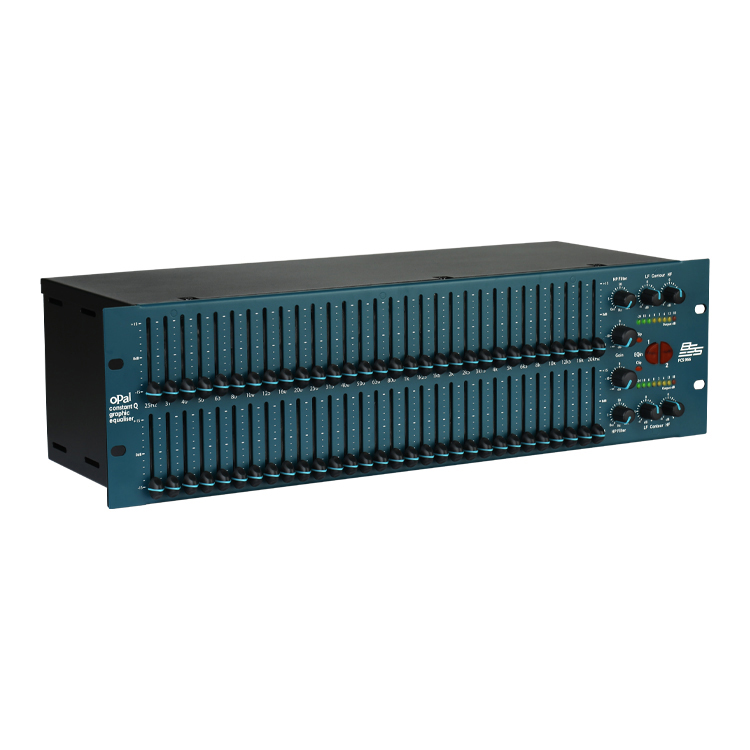

FCS966 Dual 30 Bit Graphic Equalizer

MOQ: 10pcs

Back to Contents

Quote Now sales1@epxunguan.com

Model Number	FCS966 Equalizer
Input Impedance	10kOhm, electronically balanced
Output Impedance	< 50kOhms, electronically balanced

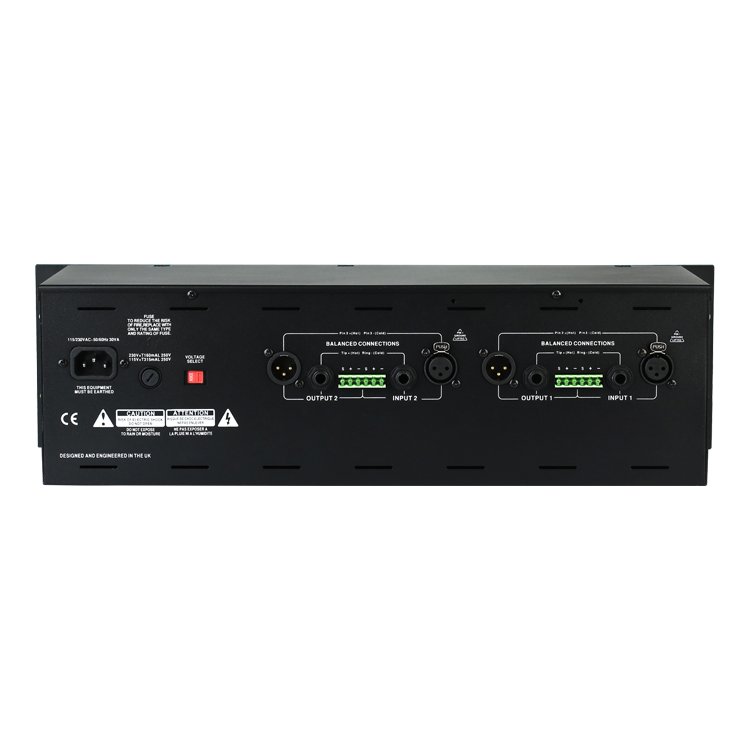

Input/Output	XLR-type, 1/4″ TRS jack and Phoenix/Combicon screw terminals
CMRR	>-40dB@1KHz
Maximum Input Level	>+20dBu
Maximum Output Level	>+20dBu into 600 Ohms
GAIN control	+10dB to – infinity
HP filter control	OUT to 250Hz @ 12dB/octave
LF contour	+/-6dB shelving @ 50Hz 6dB/octave
HF contour	+/-6dB shelving @ 14kHz 6db/octave
FREQUENCY bands	+/-15dB on ISO centres with a Q of 4
Frequency Response	5Hz to 45kHz +/-1dB
Noise	<-94dB 22Hz to 22kHz
Dynamic Range	> 115dB
Cross Talk	>-80dB @1kHz
Distortion	<0.005%THD (80kHz measurement BW) 20Hz-20kHz
Dimensions	19″ x 5.25″ x 7.1″ (483mm x 134mm x 180mm)
Weight	6.6lbs (3kgs), unpacked
AC Power	115/230V AC, 50/60Hz, 30VA
