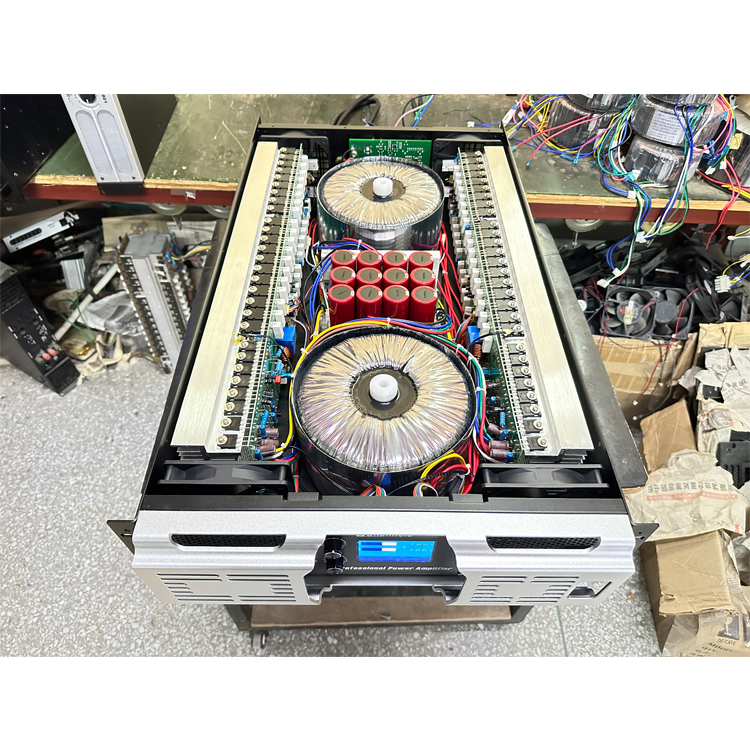

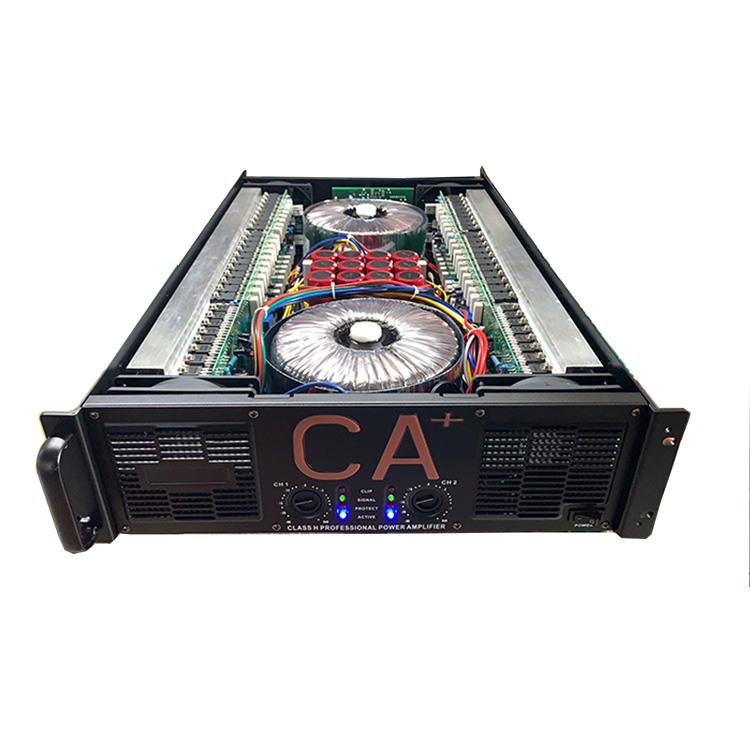

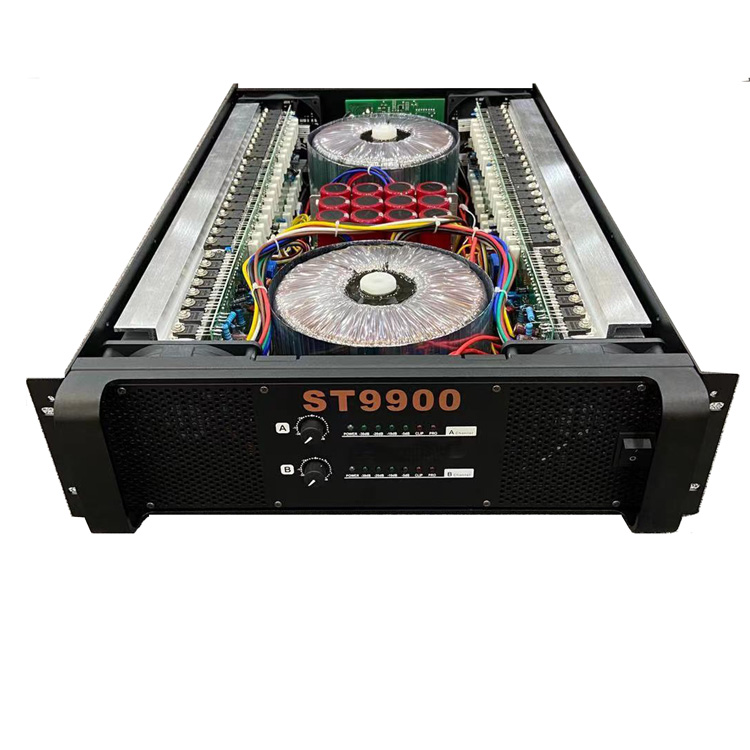

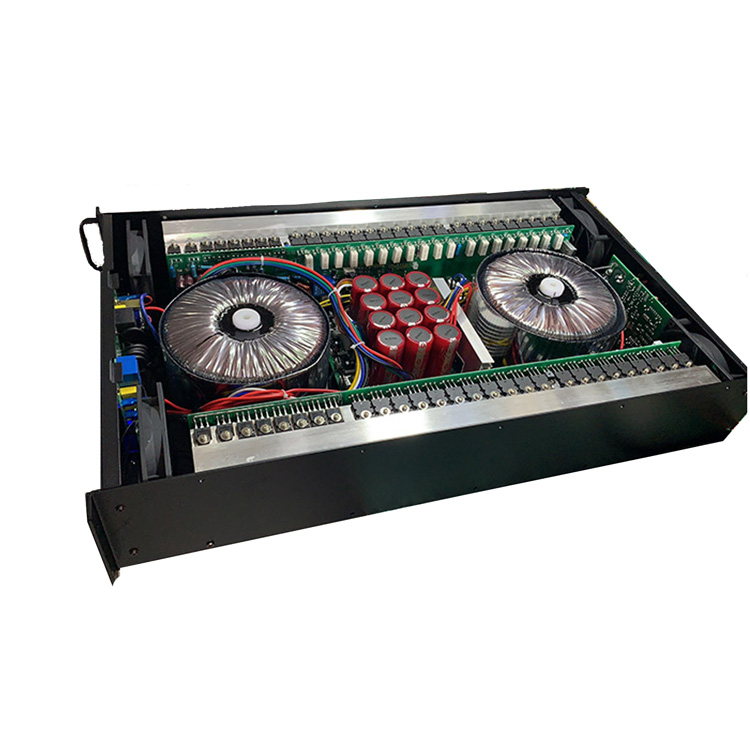

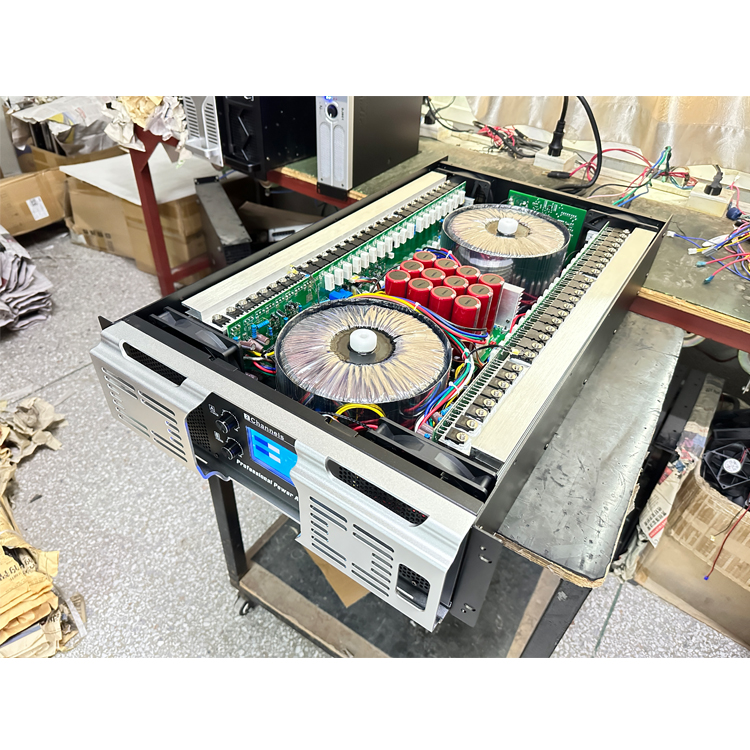

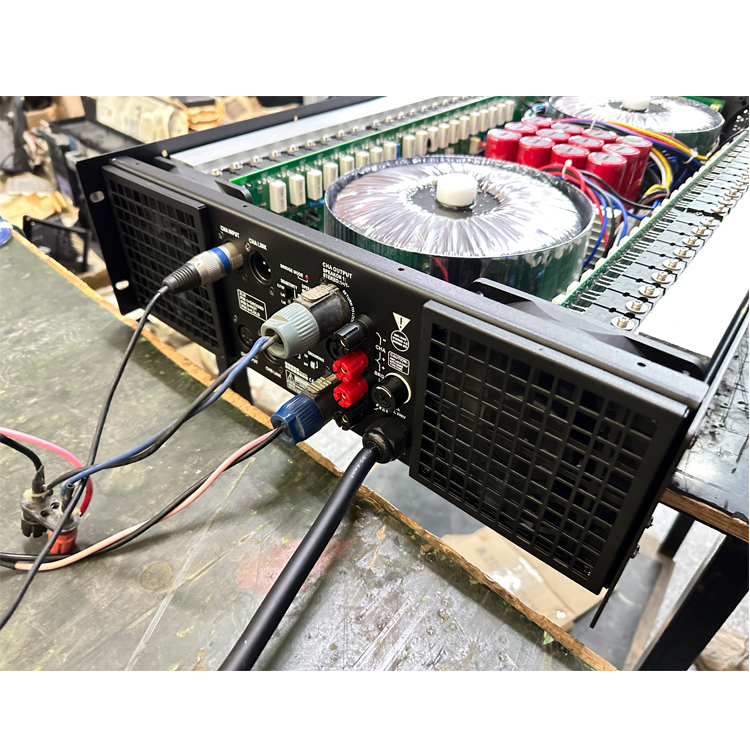

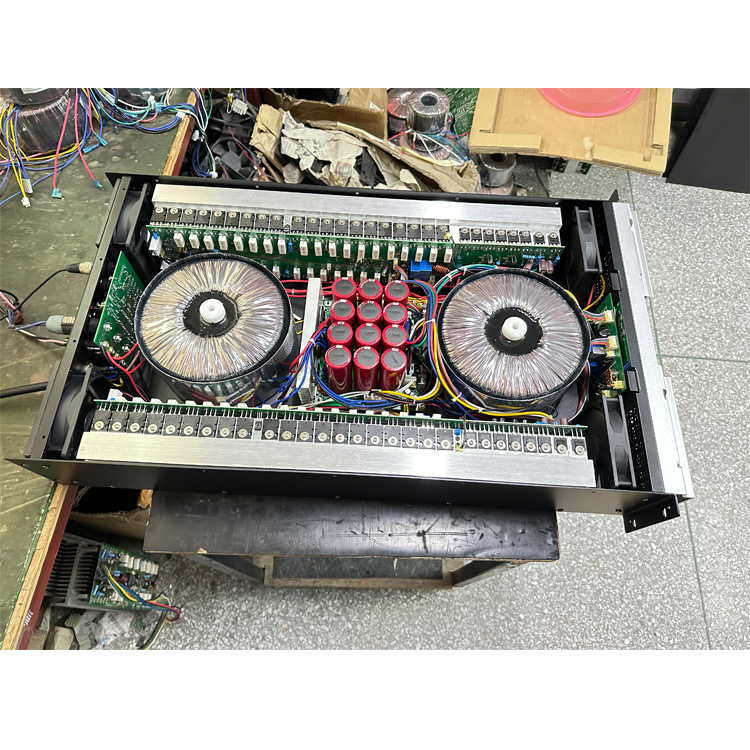

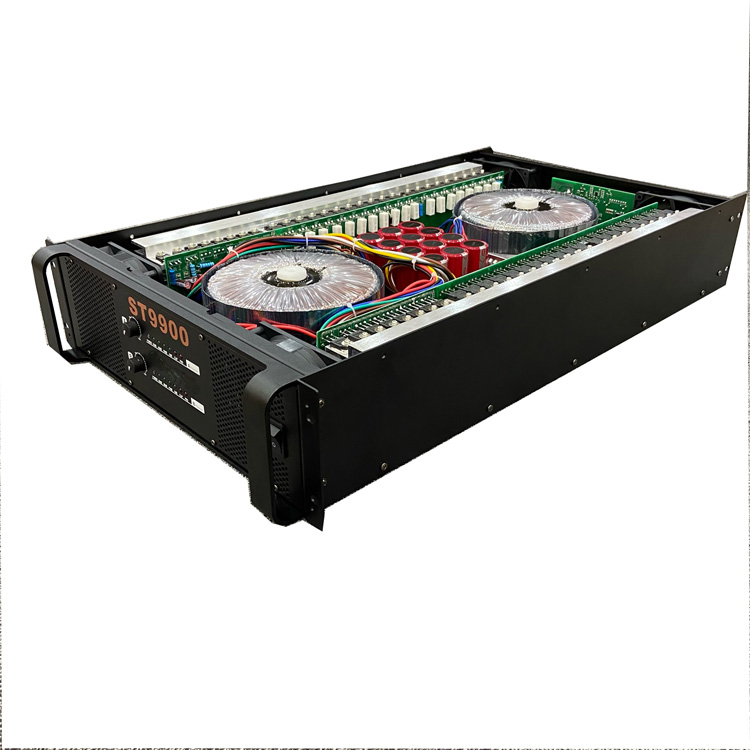

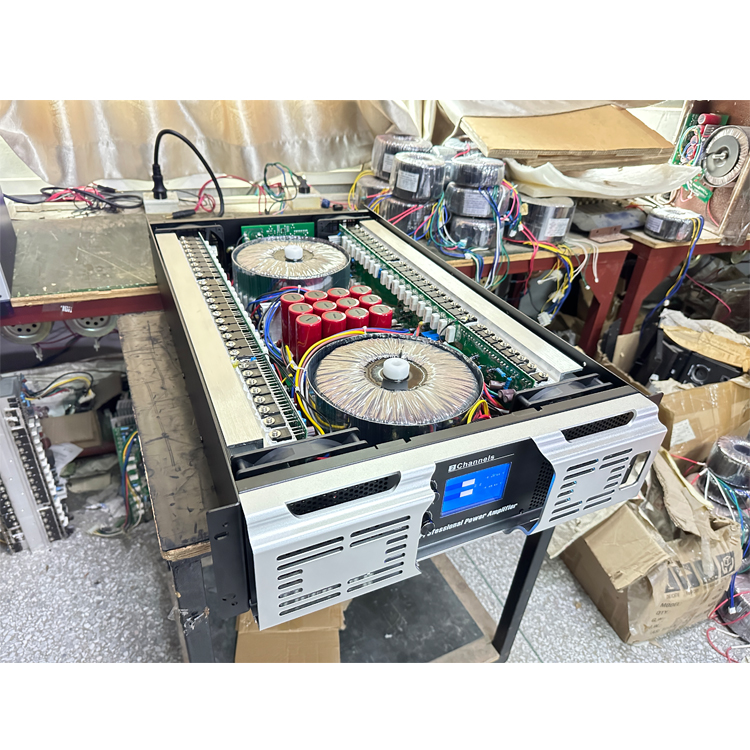

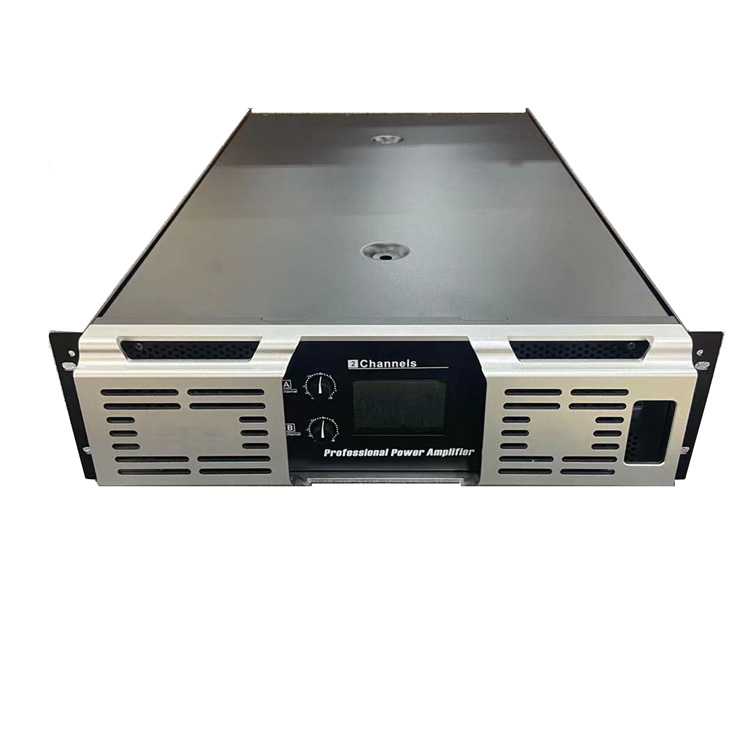

CA+100、BT5000、ST9900 Double Transformer Power Amplifier

MOQ: 10pcs

Back to Contents

Quote Now sales1@epxunguan.com

Specification
Additional Information

Model	CA+100	ST-9900	with LCD display
8Ω Setero Power	1800W	1800W	1800W
4Ω Setero Power	2700W	2700W	2700W
2Ω Setero Power	4050W	4050W	4050W
8Ω Bridged Power	8100W	8100W	8100W
4Ω Bridged Power	16200W	16200W	16200W
THD(20Hz~20kHz for 1W)	<0.1%
THD(1KHz and 1dB below clipping)	<0.05%
Slew Rate	20V/μS	30V/μS	40V/μS	43V/μS	45V/μS
S/N Radio	>110dB
Frequency Response	20Hz-20KHz,-3dB@100KHz
Input Independence	20kΩ
Channel Isolation(Crosstalk) 1KHz	>70dB
Cooling Methodology	Air Flows from Front to Back, Intelligent Continously Circuit Designed
Protection Methodology	OverHeat, Short Circuit, Open Circuit,DC, Output Relay-Zero Current Switch, Intellectual Clip Limiter
Power Requirement	200-240V~50-60Hz
Mimimum Load Independence	2Ω
Dimension(WHD)
Gross Weight	61.5KG	61.5KG	61.5KG
