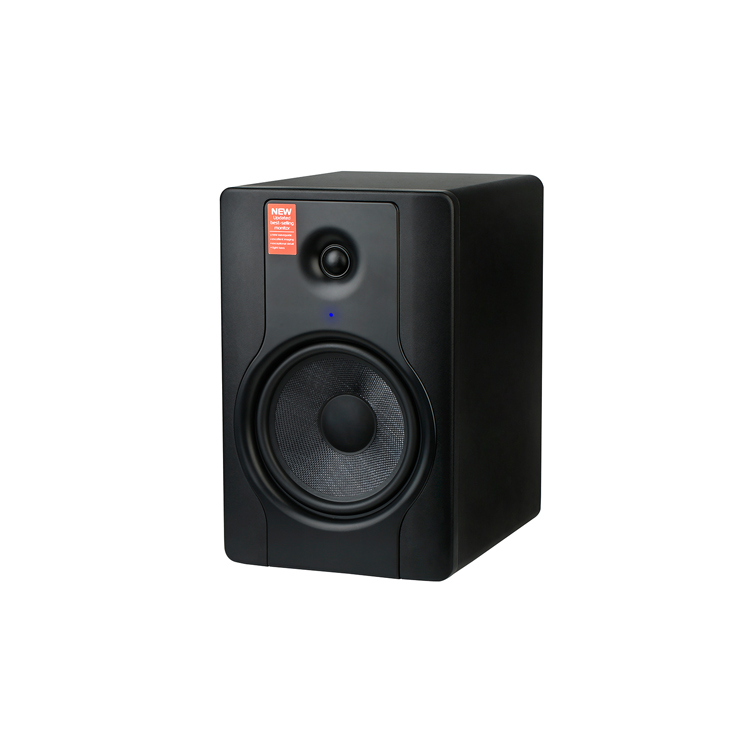

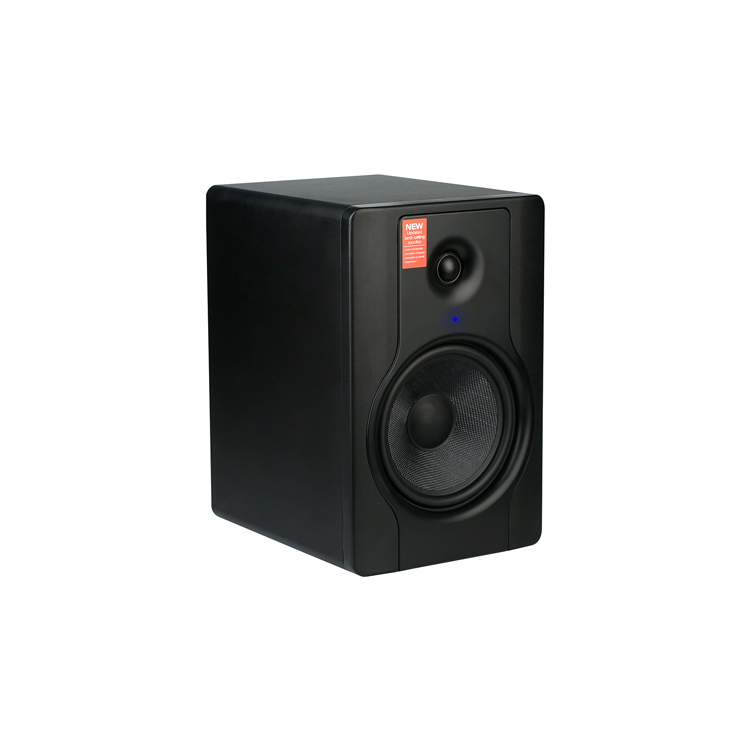

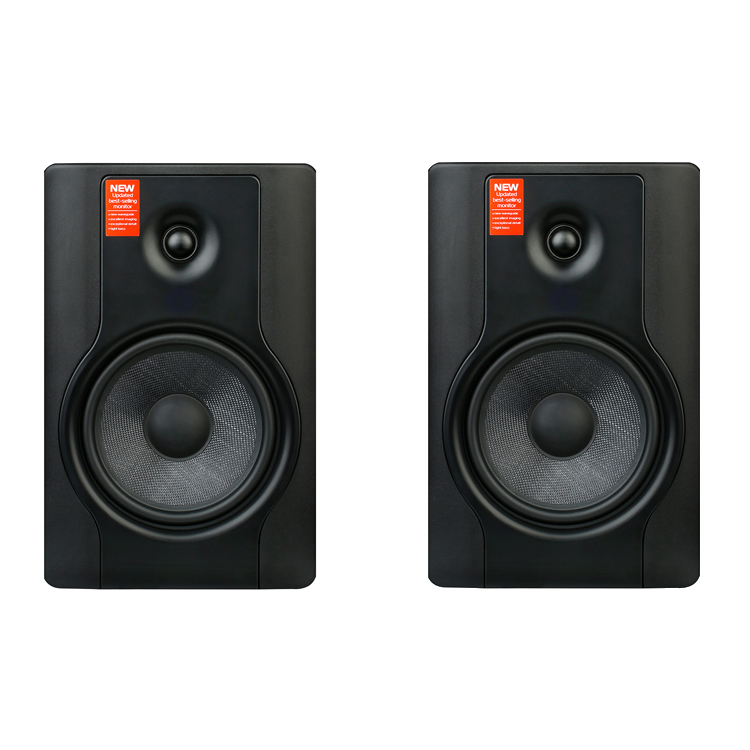

BX8D2 8 Inch Monitor Speaker

MOQ: 10pcs

Quick info

Frequency Response：38 Hz-22 KHz
Crossover Frequency：2.2 KHz
LF Amplifier Power：70W
HF Amplifier Power：60 W

Back to Contents

Quote Now sales1@epxunguan.com

Description
Additional Information

Description：

BX studio monitor series is trusted by more musicians and recording professionals than any other. Now, the BX8 D2 monitors extend the bestsellers’ legacy* with an elegant new design inside and out. We leveraged technology from our high-end monitors to extend the frequency response and provide an even more natural listening experience. Custom Class A/B analog amplifiers deliver superior dynamics and tonal accuracy across the frequency spectrum—while the latest-generation woven Kevlar low-frequency drivers and waveguide-loaded silk dome tweeters provide rich, defined sound. With the BX8 D2, you’ll enjoy the utmost accuracy in an engaging listening experience.

Type	2-way near-field studio reference monitors
LF Driver	8-inch(203 mm) Kevlar curved cone with high temperature voice coil and damped rubber surround, magnetically shielded
HF Driver	1-inch (25 mm) magnetically shielded natural silk dome
Frequency Response	38 Hz-22 KHz
Crossover Frequency	2.2 KHz
LF Amplifier Power	70W
HF Amplifier Power	60 W
Signal-to-Noise Ratio	> 100 dB typical A-weighted

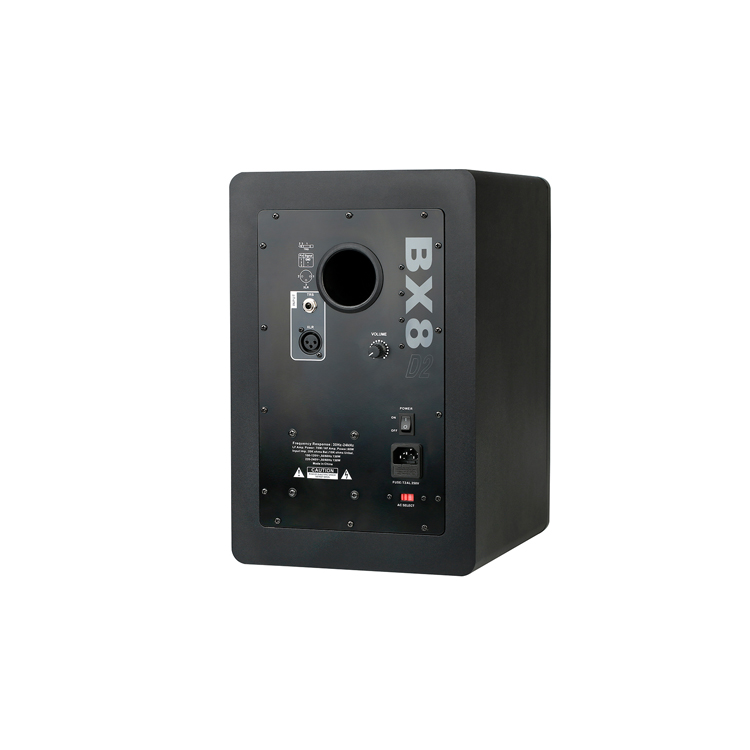

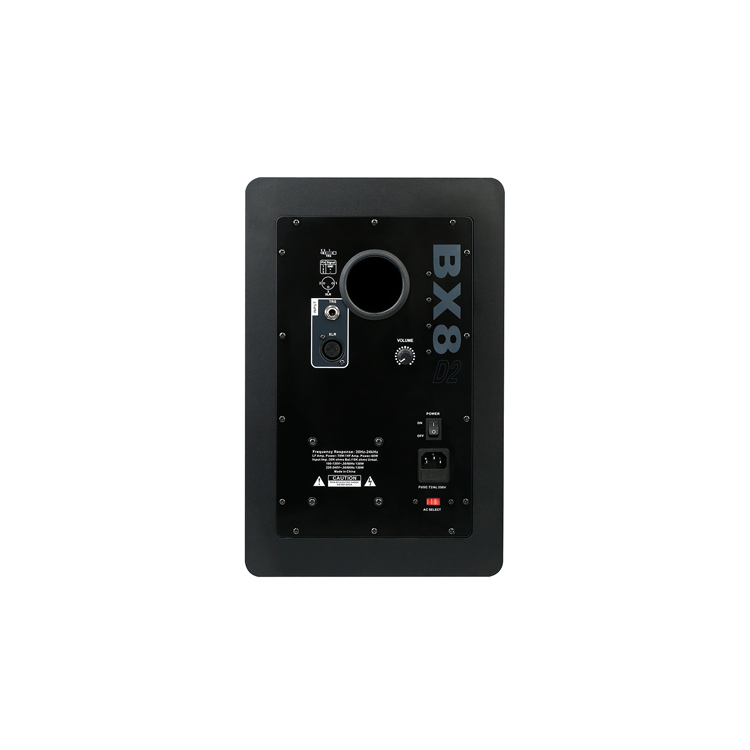

Input Connectors	1 x XLR balanced input connector 1 x TRS balanced/unbalanced input connector
Polarity	Positive signal at + input produce outward LF cone displacement
Input Impedance	20 KΩ balanced, 10 KΩ unbalanced
Input Sensitivity	85 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum
Protection	RF interference, output current limiting, over temperature, turn- on/off transient, subsonic filter, external mains fuse.
Indicator	Power on/off indicator on rear panel
Power Requirements	Factory-programmed for 115 V ~50/60 Hz, 230 V ~50/60 Hz,or 100 V~50/60 Hz
Cabinet	Vinyl-laminated high-acoustic-efficiency MDF
Dimension (height x width x depth)	15″ x 10″x12″ 15″x10″x12″ 381 mm x 254 mm x 305 mm
Weight (without packing)	26.4 lbs. 12kg
