DC4.6、DC4.8、DC4.12(3U)Power Amplifier

MOQ: 10pcs

Back to Contents
  • Description
  • Additional Information

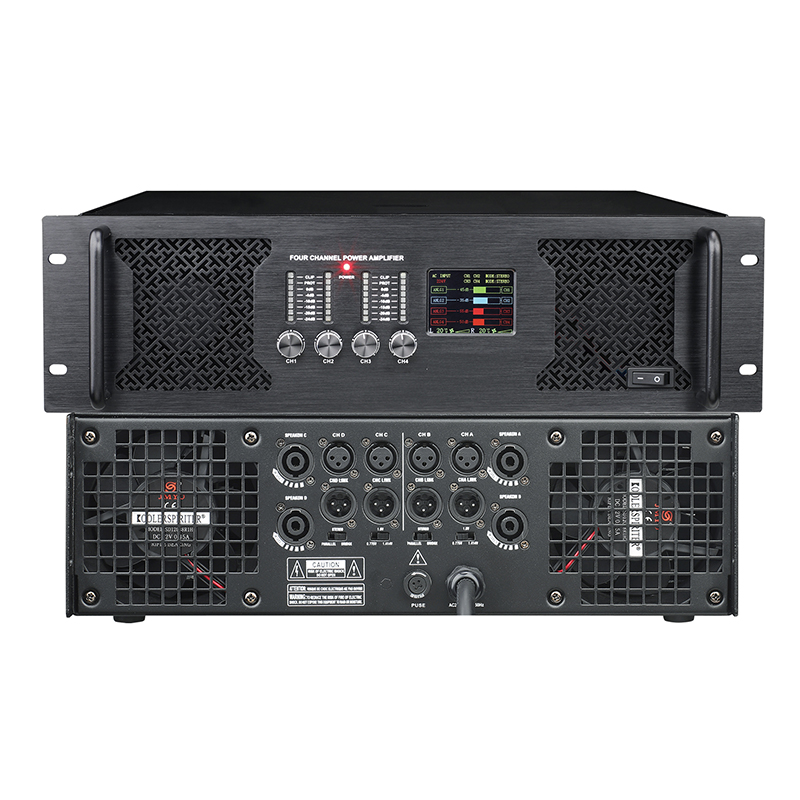

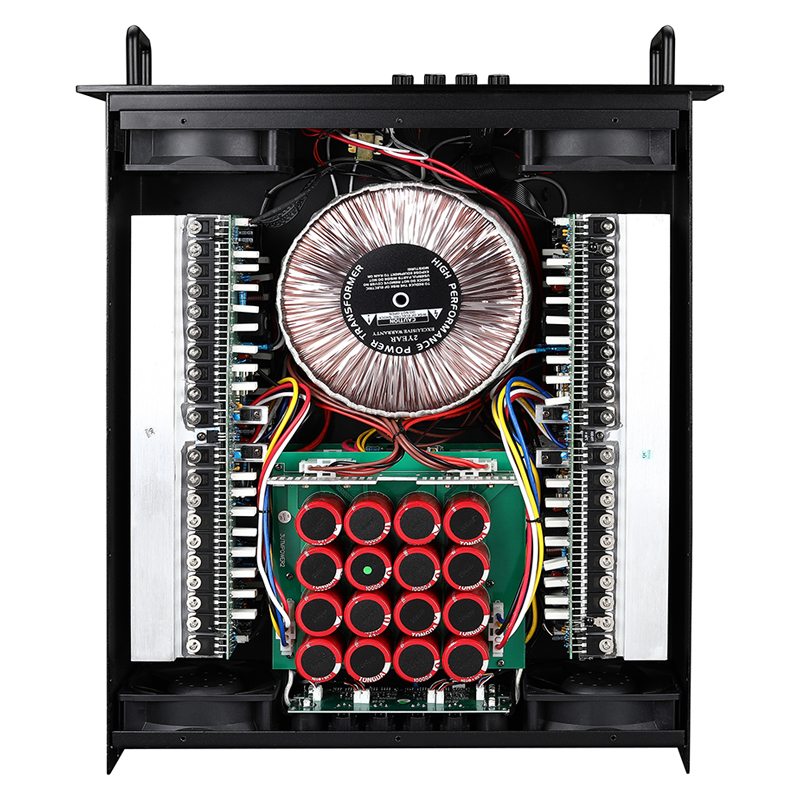

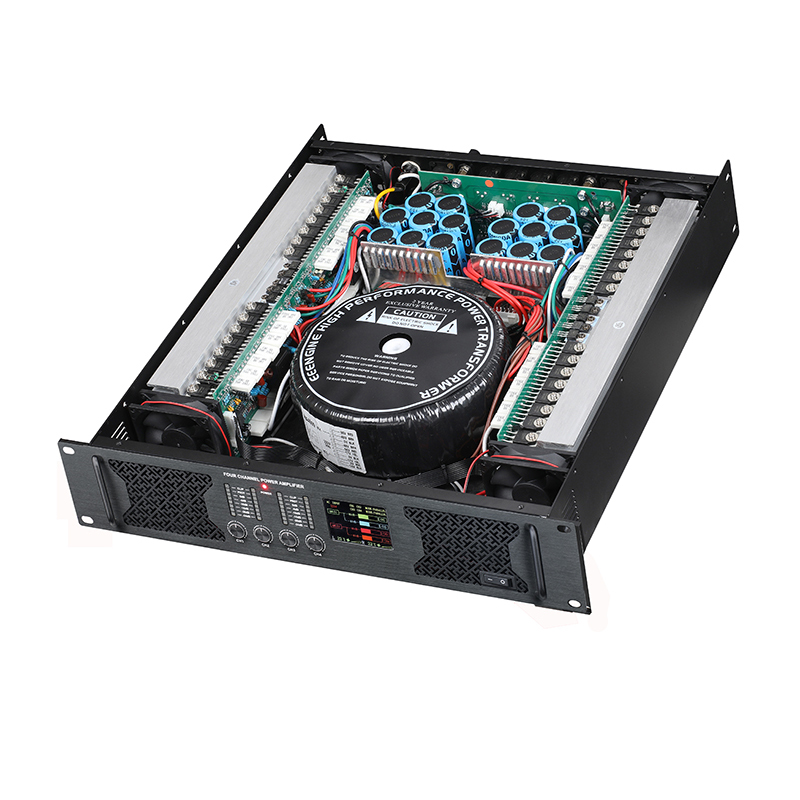

The DC series adopts high-end aluminum panels, combined with fashionable color display screens, to clearly understand the working status at a glance. The circuit design achieves four channels of powerful power output, and achieves astonishing power output by switching bridge modes, flexibly combining to meet more different occasions’ requirements. Specially designed low temperature rise pure copper transformer, coupled with a super large air flow cooling system, ensures stable reproduction of perfect sound at any time

Model: Power: Carton size:
DC4.6 4*600W 61.5*59*15cm
DC4.8 4*800W 61.5*59*15cm
DC4.12 4*1200W 68.8*57.5*20.5cm
Frequency Response 20-20000Hz(±0.3dB)
THD <0.03% @ 8Ω 1KHz
Crosstalk >70dB @ 8Ω 1KHz
Input Sensitivity 0.775V/1.0V/1.4V
Input Impedance 20K Ω (Balanced)/10KΩ(Unbalance)
Protection Overheat,short circuits,DC limited and softstart,Output relay-Zero Current Switch,Smart Clip limiter.
